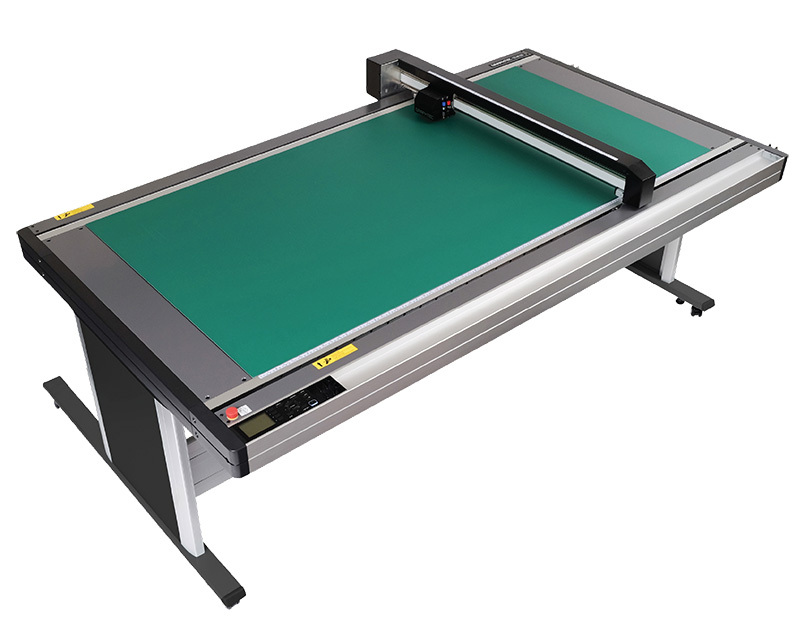

FCX2000-180 FLATBED MONUMENT CUTTER 70 x 36 inches
FCX2000-180 36 x 70 inch Flatbed Monument Cutter
Financing Available Through PEAC Solutions
Highly accurate, heavy-duty flatbed monument sandblast cutter.
Effective cutting area of 36"x70"
Dual head design delivers 500G and 1000G of force at speeds up to 400mm/s.
Process materials thick or thin including: Rubylith, Static Cling Film, Vinyl, Rubber Sandblast, Diamond Grade Reflective, Chipboard, E-flute and more.
_______________________________________________________________________________________________________________________________________________
Graphtec’s Cutting Master 4 plug-in for Adobe Illustrator and CorelDRAW is used to send cut designs, as well as control parameters of the plotter.
________________________________________________________________________________________________________________________________________________
Interface: Ethernet, USB2.0 and Serial RS-232C | Intuitive 3.7” LCD Screen | Digital Servo Motor USB Flash Memory for Offline Operation | Win & Mac Compatible
______________________________________________________________________________________________________________________________________________________________________________________________
Media Type
| Media Type | Thickness | Supported Blades |
|---|---|---|
| Self-adhesive marking film (vinyl, fluorescent, reflective) |
up to 0.25 mm | CB09UB |
| Heavy paper/board (pattern paper, oil board) |
up to 0.5 mm | CB15U, CB15U-K30 |
| up to 1.0 mm | CB30UC | |
| Compressed foam sheet | up to 0.8 mm | CB15U-K30 |
| Sandblast resist rubber | up to 1.0 mm | CB15U-K20 |
| Cardboard (F/G flute) | up to 1.1 mm | CB30UC |
| CB15U-K30 | ||
| Clear sheet for plastic boxes | up to 0.5 mm | CB15U |
| up to 1.0 mm | CB15U-K30 | |
| High-intensity reflective film | up to 0.5 mm | CB15UA |
| up to 1.0 mm | CB15UA-K30 |
____________________________________________________________________________________________________________________________________________________________________________________________________________________________
PACKAGING
| Model | FCX2000-180VC | FCX2000 Stand |
|---|---|---|
|
Dimensions |
65.4 x 100 x 33 |
63 x 32.1 x 12.4 |
|
Gross weight |
668 lbs | 59.4 lbs |
